ViewBoard IFP7551 (15) EDLA-certified 75” display featuring NFC support for quick class startup

• Native Access to Google Education Ecosystem
• Robust Security with Android 15 EDLA
• Engaging AI Lessons with ViewSonic Education Software
• Easy Access with AI PPT with Direct Sign-In
• Responsive Writing Experience with Circle & Go AI
• Instant Collaboration with Write-Away Technology (DMS Systems)
• AI Courseware Generation & Smart Quiz Creation
• LMS Integration Support
• Immersive 70W Audio for Maximum Engagement

🔷 PRODUCT DESCRIPTION

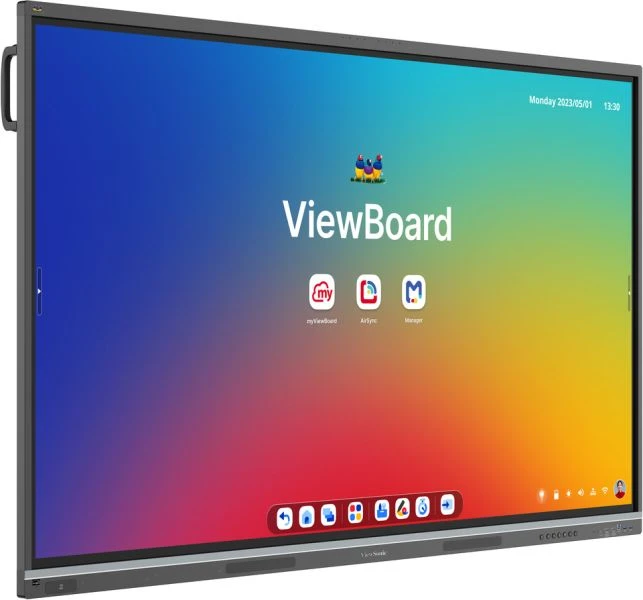

Transform your classroom into a dynamic learning environment with the ViewBoard® interactive display.

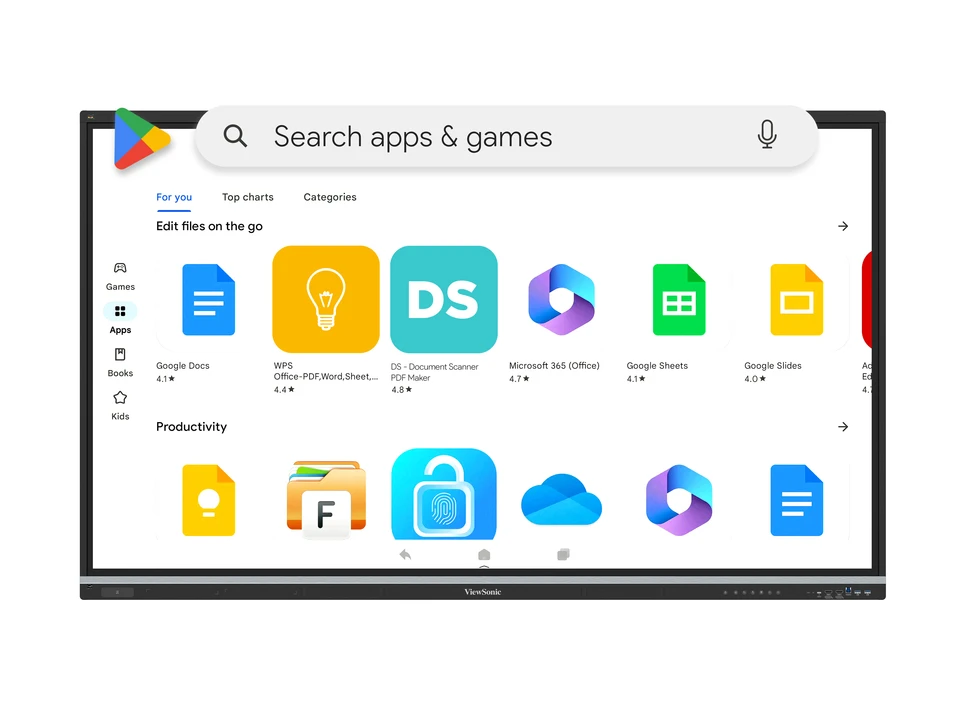

This 75” 4K interactive flat panel featuring Android™ 15 EDLA certification provides a secure, intuitive platform for modern teaching. Gain direct access to Google and Microsoft 365 files while using pre-installed education software for seamless collaboration.

Start teaching instantly with quick sign-in functionality. The 50-point touchscreen with palm rejection ensures smooth and natural interaction. Engage students with powerful 70W immersive sound and a beamforming microphone array.

Powered by an octa-core processor, the display ensures smooth multitasking and uninterrupted lessons. With EPEAT Gold and ENERGY STAR 8.0 certifications, it is also an environmentally responsible choice for digital classrooms.

🔷 DISPLAY SPECIFICATIONS

• Screen Size: 75”
• Resolution: 3840 × 2160 (4K UHD)
• Aspect Ratio: 16:9
• Refresh Rate: 60Hz
• Brightness: 500 nits
• Contrast Ratio: 1200:1 (Static), 5000:1 (Dynamic)
• Viewing Angle: 178° (H/V)
• Backlight Life: 50,000 hours
• Panel Surface: Anti-glare, Anti-fingerprint, 9H hardness

🔷 TOUCH & INTERACTIVITY

• Touch Technology: IR Recognition
• Touch Points:
  • Windows: 50 points
  • Android: 20 points
• Latency: ≤ 5ms
• Tip Detection: Dual tips (2.5mm & 8mm), Finger & Palm
• Palm Rejection: Supported

🔷 PERFORMANCE

• CPU: Rockchip RK3578 (6 TOPS)
• Processor Speed: 2.4GHz
• Memory: 16GB LPDDR
• Storage: 256GB eMMC

🔷 AUDIO & MICROPHONE

• Speakers: 70W Soundbar (25W × 2 + 20W × 1)
• Microphone: Beamforming array (8 mics, up to 12m range)
• Echo Cancellation: Full duplex

🔷 CONNECTIVITY

• HDMI 2.1 In: 4
• HDMI Out: 1
• VGA: 1
• DisplayPort: 1
• USB Type-A: Multiple
• USB Type-B: Available
• USB Type-C: Supported
• Ethernet (RJ45): 2
• RS232: 1
• SPDIF: 1
• Intel OPS Slot (80-pin): 1
• Line In: 1

🔷 POWER

• Voltage: 100–240 VAC
• Power Consumption: 100W (Typical)
• Standby: < 0.5W

🔷 ENVIRONMENT

• Operating Temperature: 0°C – 40°C
• Humidity: 20% – 80% (non-condensing)

🔷 DIMENSIONS & WEIGHT

Physical Dimensions:

• 1709.1 × 1037.5 × 85.5 mm

 Packaging Dimensions:

• 1863 × 1163 × 225 mm

 Weight:

• Net: 46.06 kg
• Gross: 57.55 kg

 VESA Mount:

• 800 × 400 mm

🔷 PACKAGE CONTENTS

• IFP7551 Display
• Power Cord (3m)
• USB-C Cable (1.8m)
• Remote Control
• USB Touch Cable (3m)
• Stylus (2 pcs)
• Quick Start Guide
• RS232 Adapter
• Clamp ×5
• Camera Plate
• Screws ×8
• HDMI Cable (3m)
• WiFi Adapter (VB-WIFI-005)

🔷 WARRANTY

          3-Year Limited Warranty
          (Covers parts, labor, and backlight with onsite support)

🔷 CERTIFICATIONS

• ENERGY STAR 8.0
• EPEAT Gold
• FCC
• CE
• CEC
• ISO
• TUV
