Rocware RC20 Mini Video PTZ Camera
Professional-Grade Video Conferencing Solution
The Rocware RC20 is a high-performance PTZ (Pan-Tilt-Zoom) camera designed for professional video conferencing, livestreaming, and educational applications. With its 10x optical zoom, Full HD 1080p resolution, and versatile connectivity options, the RC20 delivers exceptional video quality and flexibility for various environments.
📊 Product Specifications
| Feature | Specification |
|---|---|
| Image Sensor | 1/2.7″ CMOS, 2.07 MP effective |
| Resolution | 1920×1080p at 30fps |
| Optical Zoom | 10x (f/4.7mm – 46.3mm) |
| Digital Zoom | 16x |
| Field of View | Horizontal: 58.5° – 6.5°, Vertical: 35.1° – 3.6° |

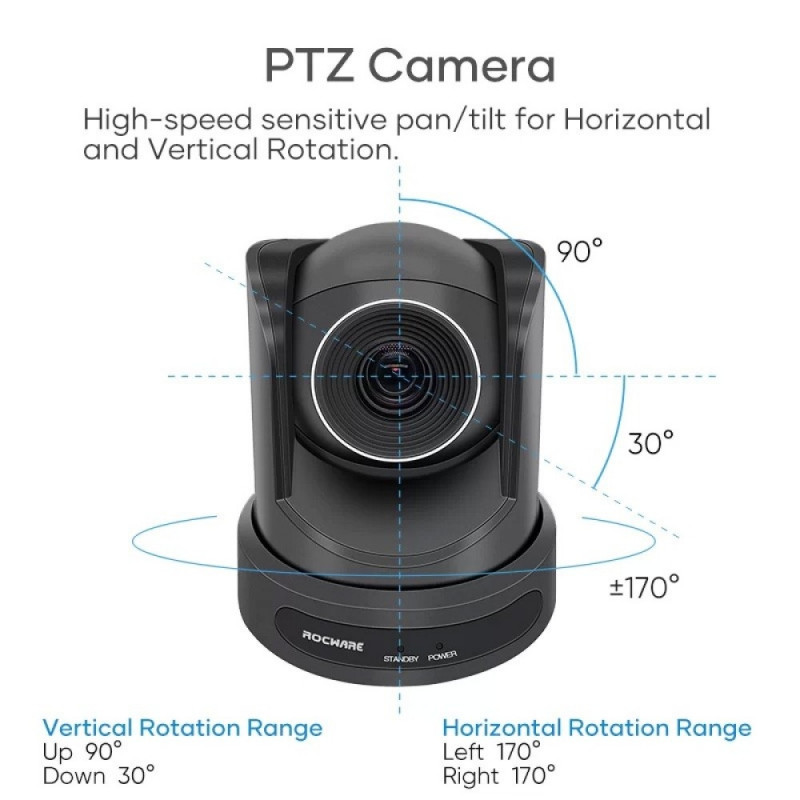

| Pan Range | ±170° |
| Tilt Range | -30° to +90° |
| Pan/Tilt Speed | Pan: 2.7° – 47°/s, Tilt: 3.4° – 30°/s |
| Preset Positions | 255 presets with 0.1° accuracy |
| Auto Focus | Laser-assisted autofocus |
| Noise Reduction | 2D & 3D digital noise reduction |

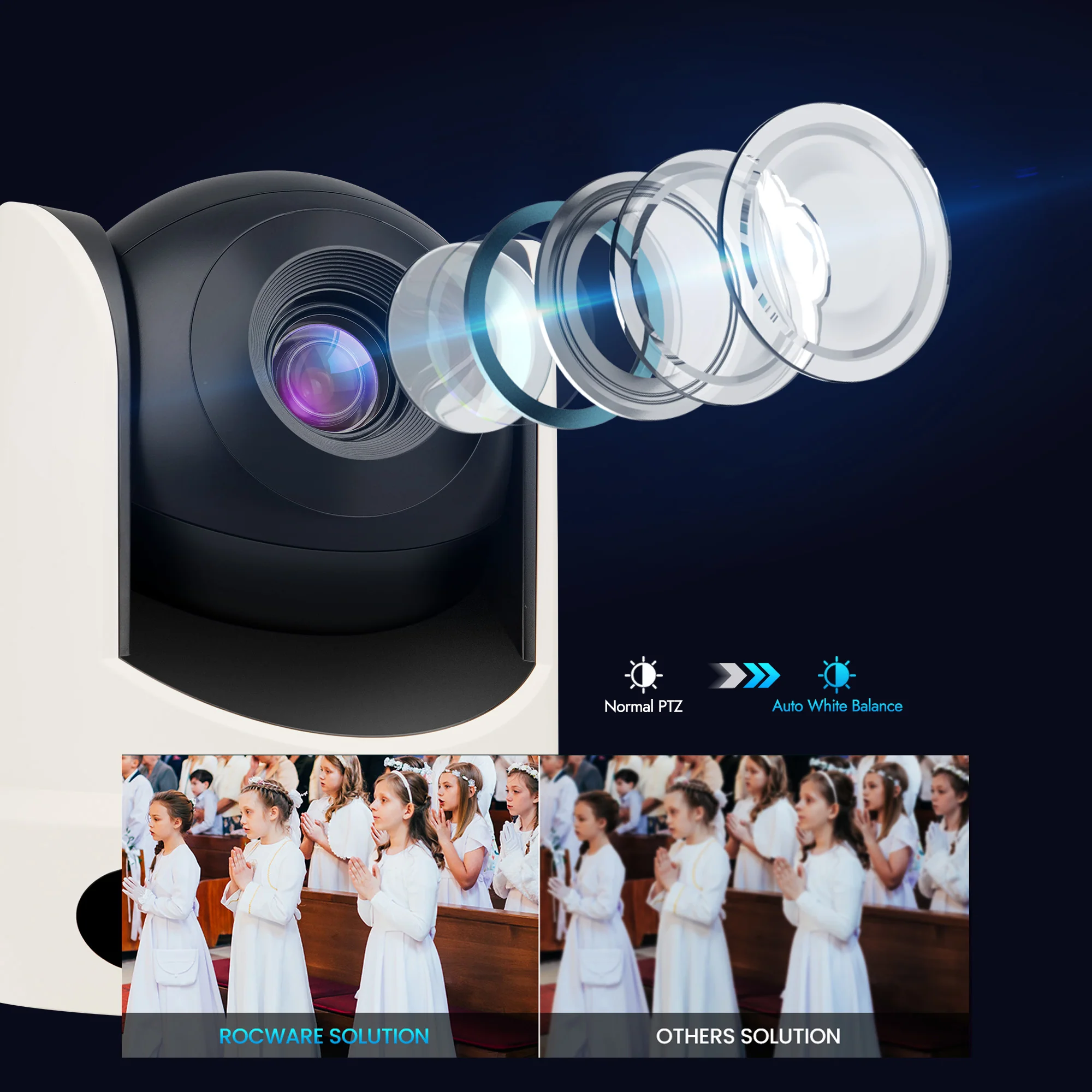

| White Balance | Auto, Manual, One Push, 3000K to 6500K |
| Video Encoding | H.264 AVC/SVC, MJPEG |
| Video Output | UVC 1.1, YUV 4:2:2 |
| Audio Interface | USB audio (via USB connection) |
| USB Interface | USB 2.0 Type-B (5V DC) |
| Control Protocols | UVC PTZ, VISCA, Pelco-D/P, RS-232, IR |
| Power Supply | USB 5V or DC 12V |
| Operating Systems | Windows, macOS, Linux, Android |
| Dimensions (L×W×H) | 141.3mm × 153mm × 163.6mm |
| Weight | 1.153 kg |
| Mounting Options | Ceiling, wall, tripod |
| Certifications | CE, FCC |

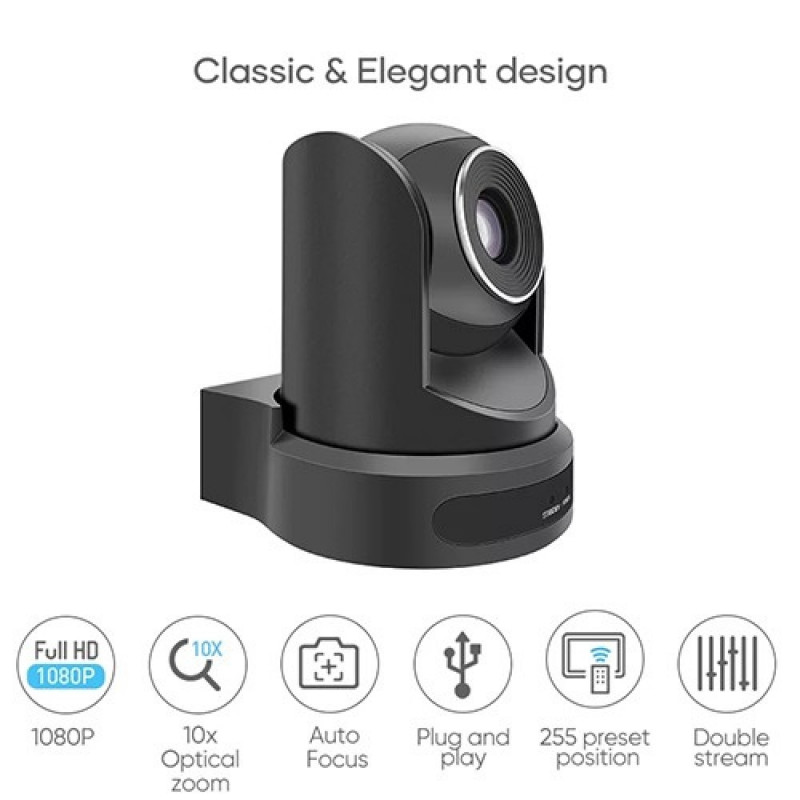

🧠Key Features
-
10x Optical Zoom: Achieve clear and detailed close-ups with the powerful zoom lens, ideal for large meeting rooms and events.​
-
Full HD 1080p Resolution: Capture high-quality video at 30fps, ensuring crisp and professional visuals.​
-
Laser-Assisted Auto Focus: Quick and precise focusing, even in low-light conditions, enhancing video clarity.​
-

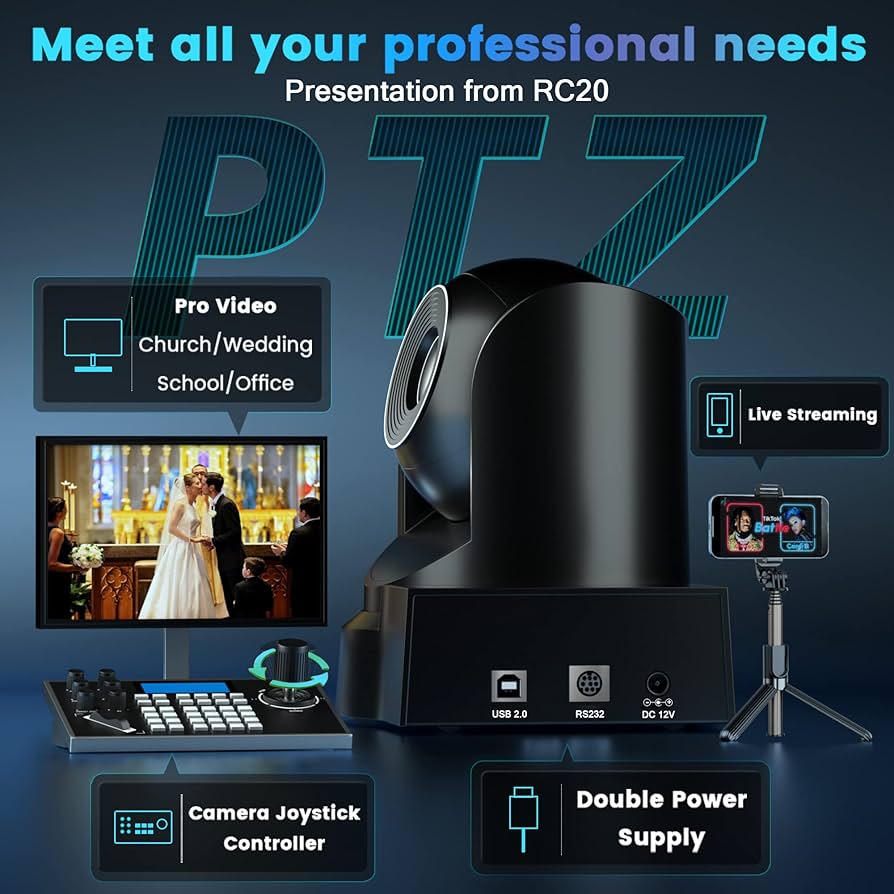

Dual Power Supply: Supports both USB and DC power inputs, offering flexibility in various setups.​
-
Wide Field of View: Cover a broad area with the wide-angle lens, reducing the need for multiple cameras.​
-
Multiple Control Options: Control the camera via USB, RS-232, or IR remote, accommodating different user preferences.​
🎯 Ideal Applications
-
Video Conferencing: Enhance virtual meetings with clear visuals and dynamic camera movements.​
-
Webinars & Live Streaming: Provide professional-quality video for online events and broadcasts.​
-
Education & Training: Facilitate interactive lessons and presentations with versatile camera control.​
-
Corporate Presentations: Ensure smooth and engaging presentations in boardrooms and conference halls.
